WAH LIN PARTS Gun Safe Lock Replacement - Chrome Keypad DIY Electronic Safe Lock with Solenoid & 2 Override Keys - Fireproof Security Box Lock for Home, Office, and Gun Safes

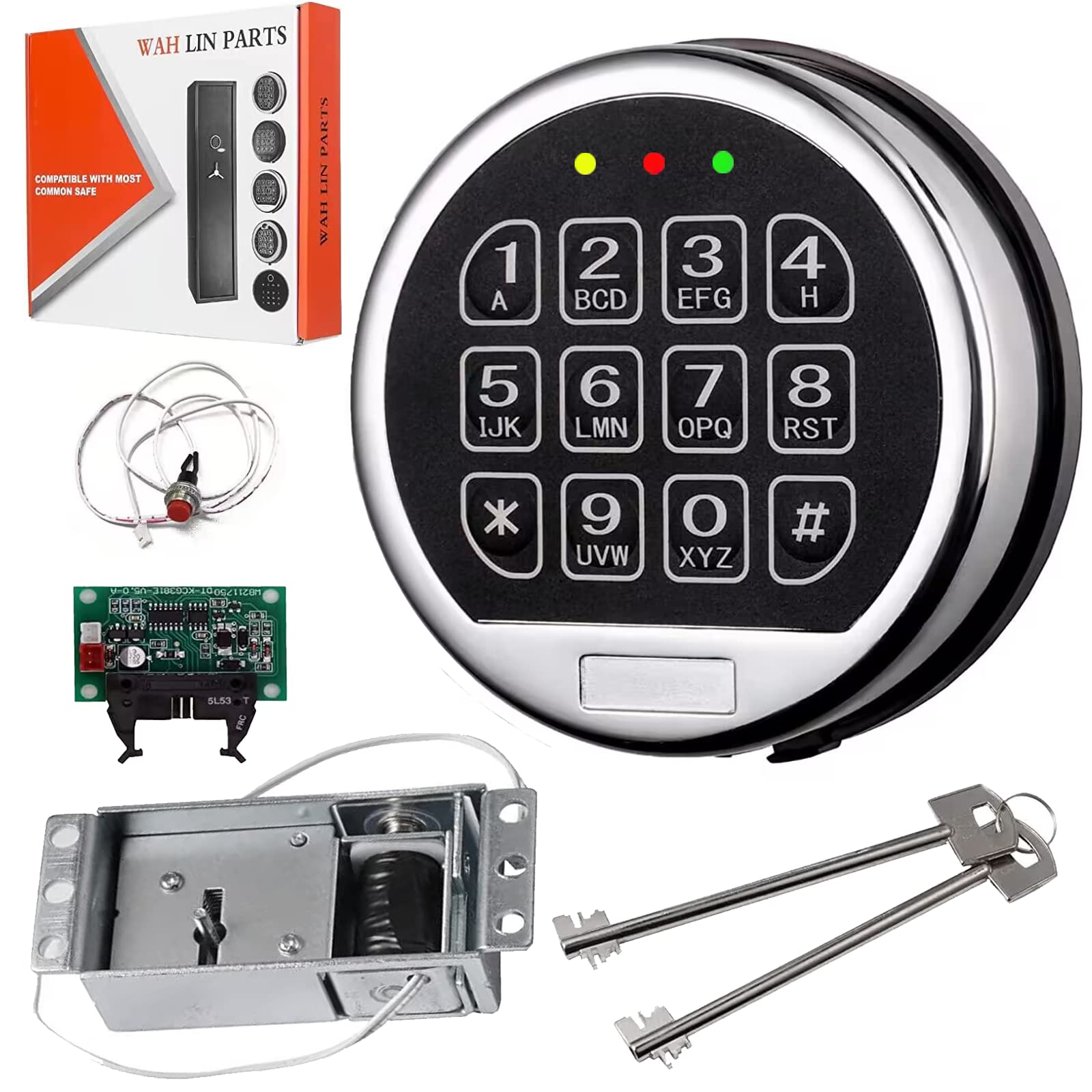

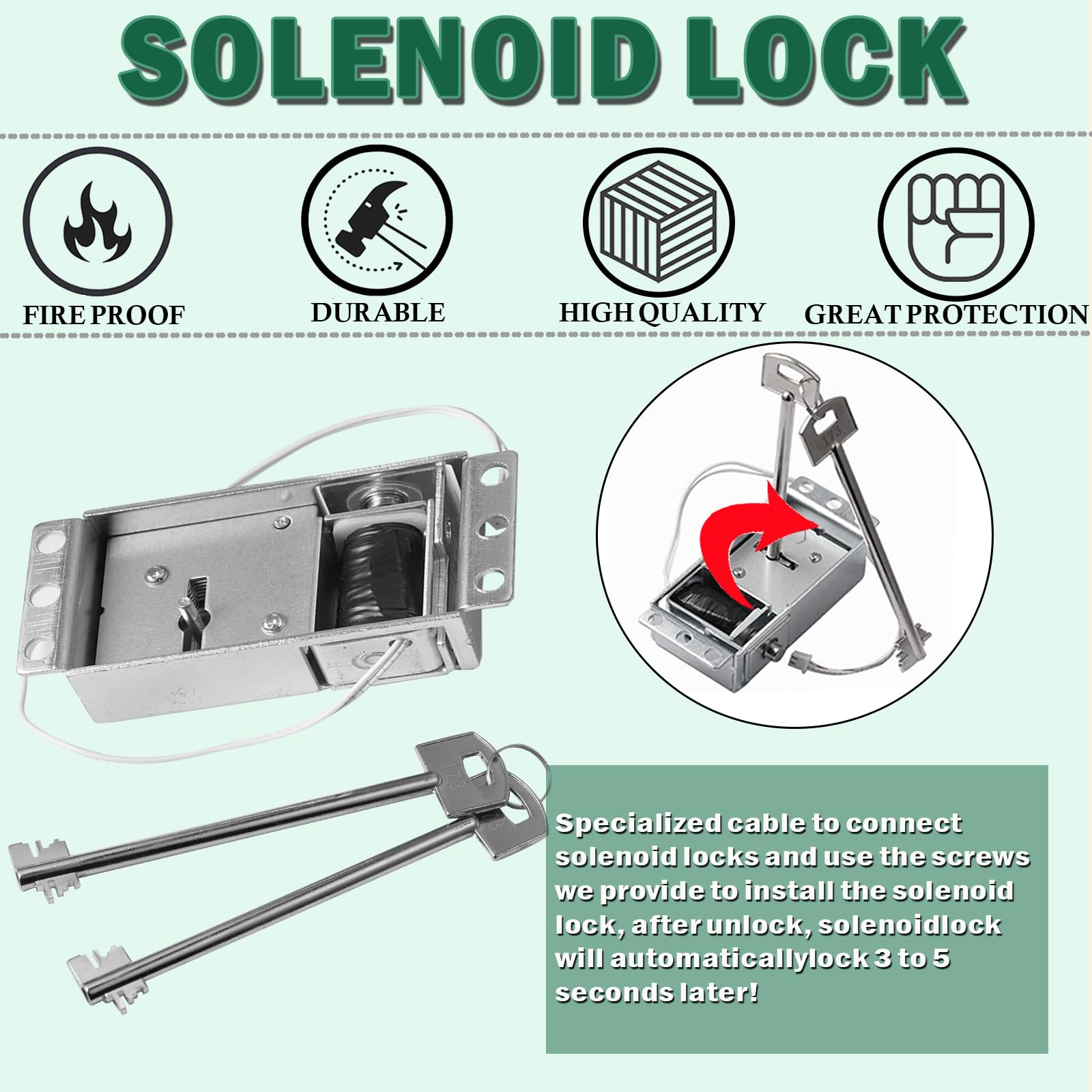

Chrome Keypad High Security Safe Lock High Security Fireproof Safe Electronic Lock: 2 User Codes (Management + User)User Codes can be 1 digit to 8 digitsWrong Try Penalty Lock Out (1 minute)Single 9V battery operationEasy to use and low battery alarm function APPLICATION: All home safes & lock box, gun safes, pistol safes.Gun safes, watch winder, file cabinet safe and more. Instruction Manual for User SAFE LOCK DESCRIPTION: Fully zinc alloy black round keypad safe electronic lock that can be replaceable in most common safes which is operated by solenoid lock mechanism. The lockset consists of panel, solenoid, reset cable (red color) and motherboard (PCB). Before installing the safe lock, please check and determine if you have the same type solenoid lock mechanism on your safe. This lock will not work if you have other type boltwork such as deadbolt, swingbolt or other type. USER PASSWORD: Please test the lock firstly for safe installation, please connect all the parts accordingly otherwise the lock will not work. Factory preset code is 1 - 5 - 9 - # and should be changed before using the safe lock. HOW TO SET CODE: Press the red button and then release it; you will hear a beep. A yellow light on the panel and stay on for a period of time, you need to enter the code while the yellow light is illuminated. Enter your 3 - 8 digit code and confirm your code by pressing the * symbol on the keypad. After confirmation, you will hear two beeps with yellow light. UNLOCKING METHOD: After completing the new user code, enter the password you set and press "#" key to confirm. Buzzer will beep once and the green light will stay on. If you enter the wrong password 3 consecutive times, the keypad will be automatically locked for about 15 minutes. SILENCING KEYPAD: You can turn off the “Beep” sound of the keypad by entering the code *- 6 - 3 - 3. To turn the “Beep” sound on, enter the code *- 6 - 6. REMINDER: This lock operates one V9 ALKALINE battery and when the battery is at low voltage the red light is on to remind the user to replace the battery in time. IMPORTANT: PLEASE DO NOT TRY TO INSTALL IF YOU ARE NOT SAFE TECHNICIAN OR PROFESSIONAL LOCKSMITH. Instruction Manual for User SAFE LOCK DESCRIPTION: Fully zinc alloy black round keypad safe electronic lock that can be replaceable in most common safes which is operated by solenoid lock mechanism. The lockset consists of panel, solenoid, reset cable (red color) and motherboard (PCB). Before installing the safe lock, please check and determine if you have the same type solenoid lock mechanism on your safe. This lock will not work if you have other type boltwork such as deadbolt, swingbolt or other type. USER PASSWORD: Please test the lock firstly for safe installation, please connect all the parts accordingly otherwise the lock will not work. Factory preset code is 1 - 5 - 9 - # and should be changed before using the safe lock. HOW TO SET CODE: Press the red button and then release it; you will hear a beep. A yellow light on the panel and stay on for a period of time, you need to enter the code while the yellow light is illuminated. Enter your 3 - 8 digit code and confirm your code by pressing the * symbol on the keypad. After confirmation, you will hear two beeps with yellow light. UNLOCKING METHOD: After completing the new user code, enter the password you set and press "#" key to confirm. Buzzer will beep once and the green light will stay on. If you enter the wrong password 3 consecutive times, the keypad will be automatically locked for about 15 minutes. SILENCING KEYPAD: You can turn off the “Beep” sound of the keypad by entering the code *- 6 - 3 - 3. To turn the “Beep” sound on, enter the code *- 6 - 6. REMINDER: This lock operates one V9 ALKALINE battery and when the battery is at low voltage the red light is on to remind the user to replace the battery in time. IMPORTANT: PLEASE DO NOT TRY TO INSTALL IF YOU ARE NOT SAFE TECHNICIAN OR PROFESSIONAL LOCKSMITH. Lock Mechanism Swing Bolt or Solenoid Lock Mechanism accessible and easy installation. Fireproof & Anti Drill High Standard Grade Zinc Alloy Panel with Fireproof Protection.Anti-drill and Anti-Pick.Wrong password lockout mode.Password is secured & stored when out of battery.

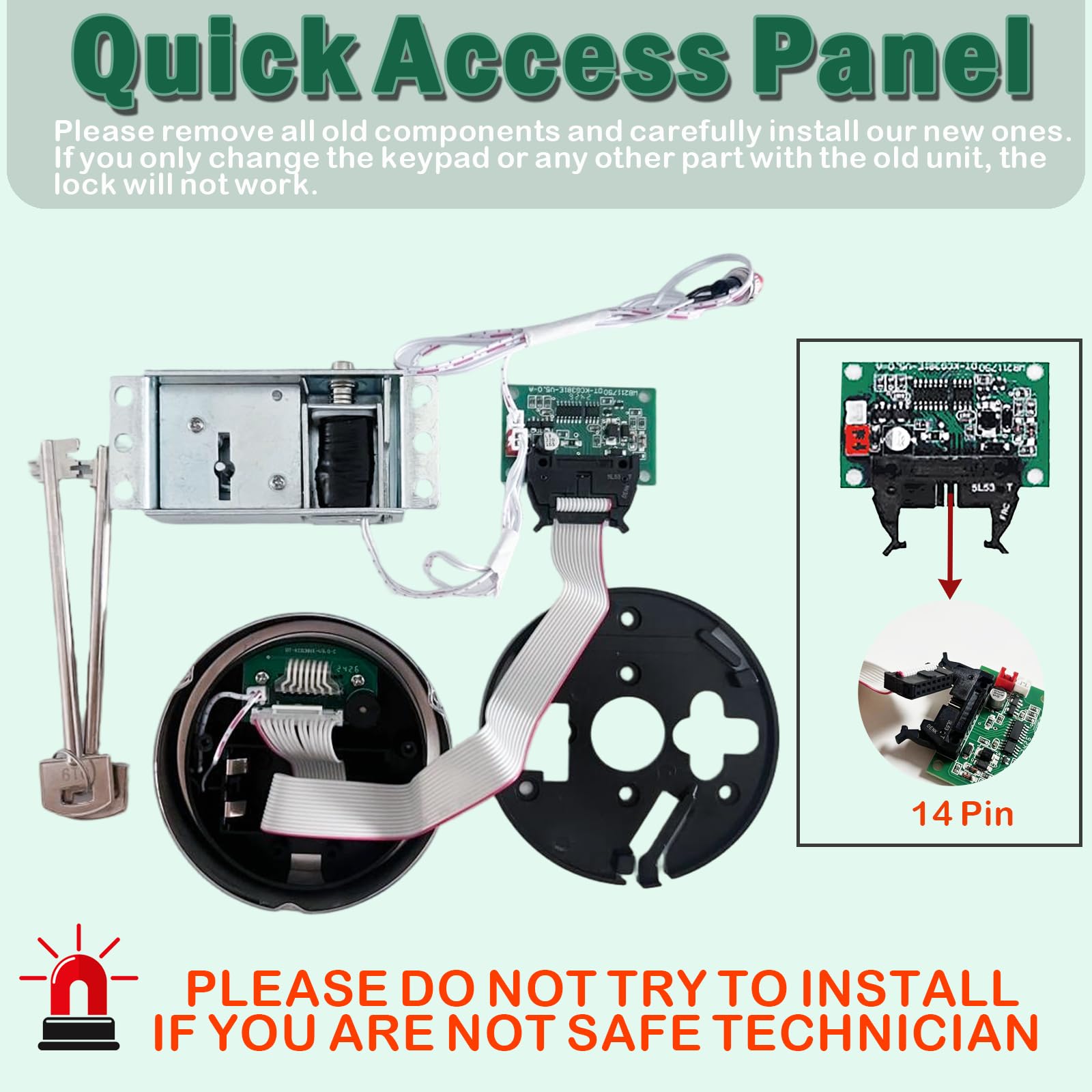

Note This product is a set of combination products, not detachable for use, please remove all your old parts and adopt all our new parts to work properly

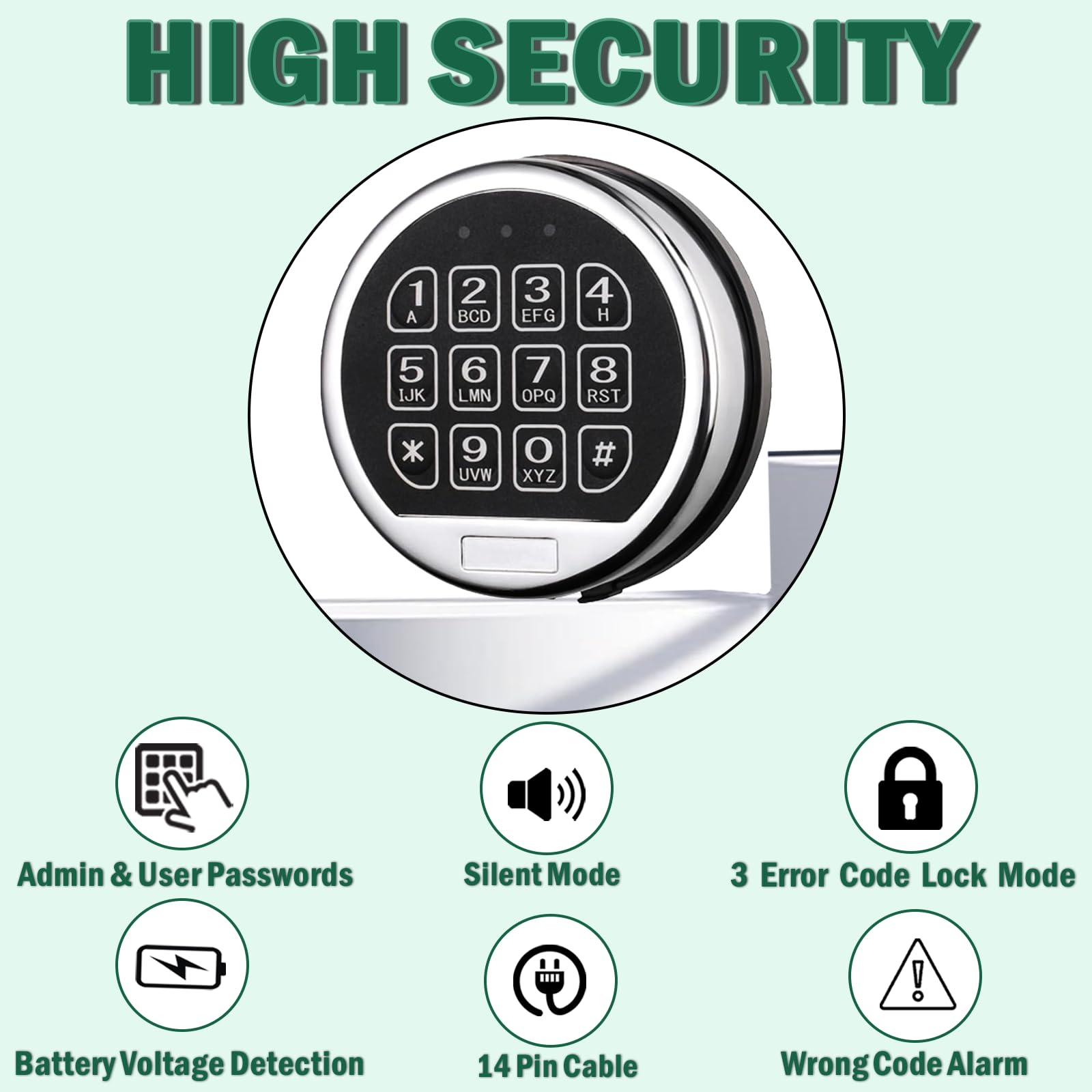

High Security Safe Lock High grade zinc alloy fire resistant keypad with solenoid lock that is strong, durable, fire resistant, corrosion resistant, provides physical protection against forced entry, and offers a 3 error code locking mode

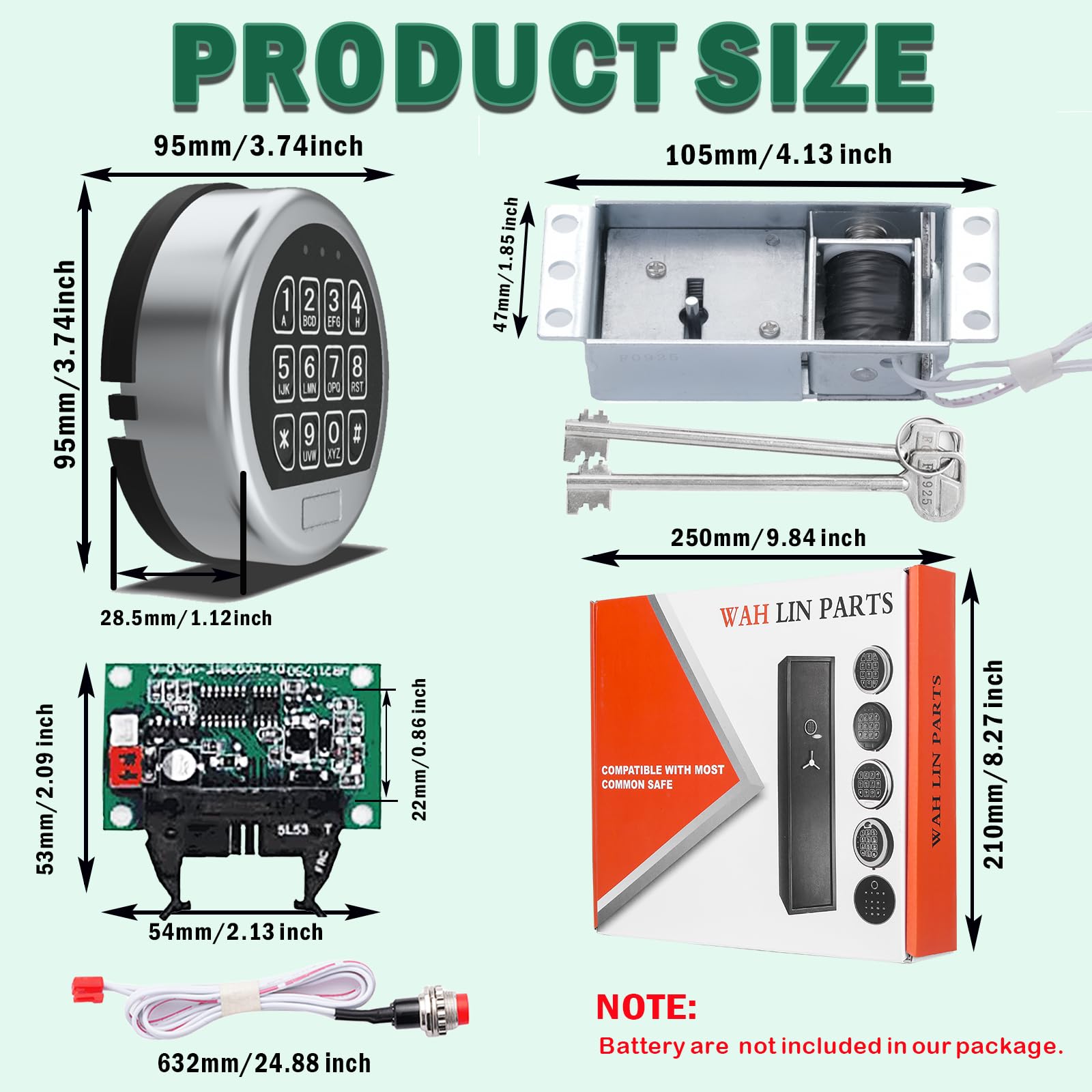

Product Specification Rund shape 95mm (3.74 inch) round faceplate, weight 6.35 ounces, please remember to check the size to match your safe box before you buy, you can refer to our product instruction video

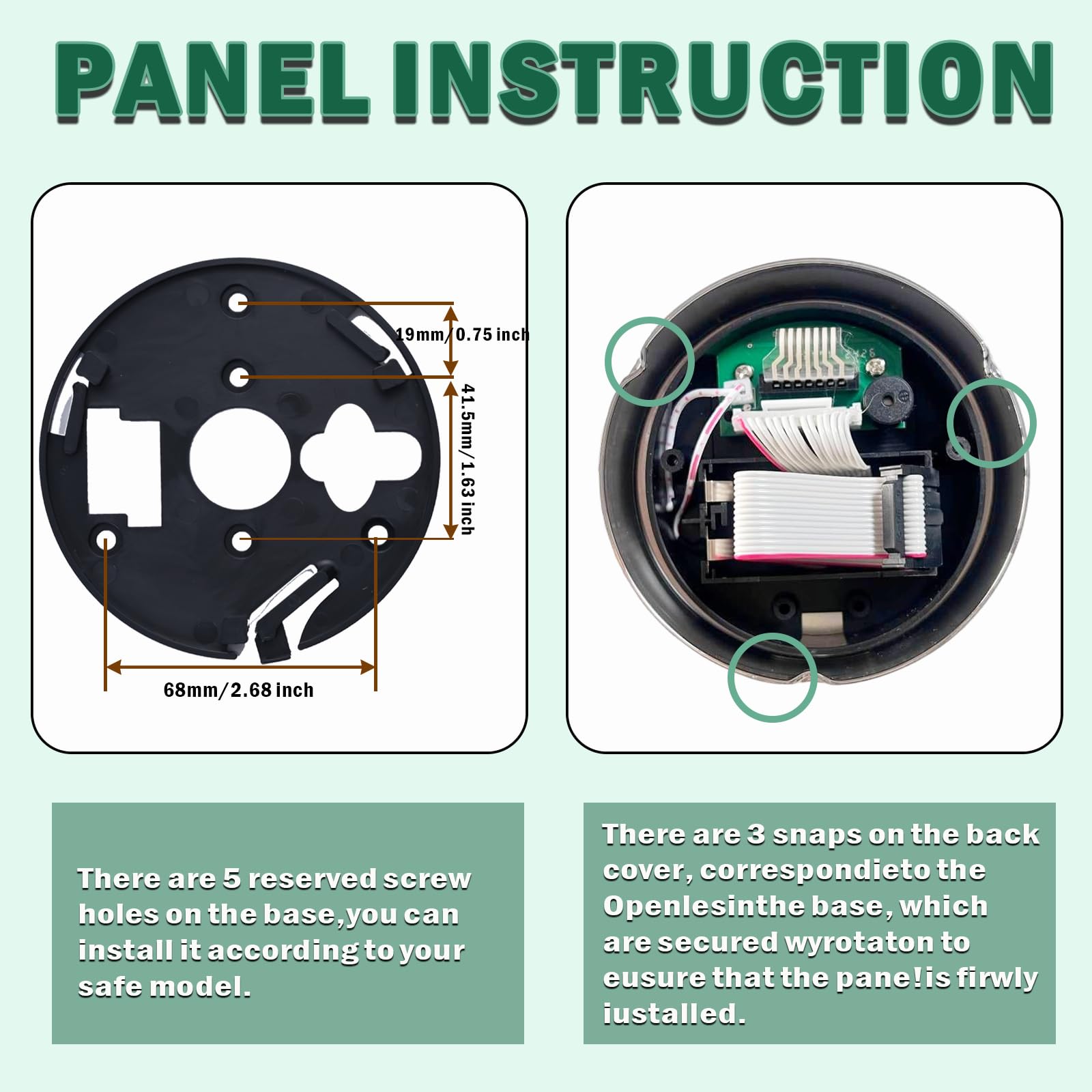

Easy to Install Open with 3-8 digital codes that can be programmed and 3 different colors of lights indicating different states and integrated 1*9V ALKALINE battery compartment inside entry case. To replace the battery, remove the keypad face by pressing the tab counterclockwise

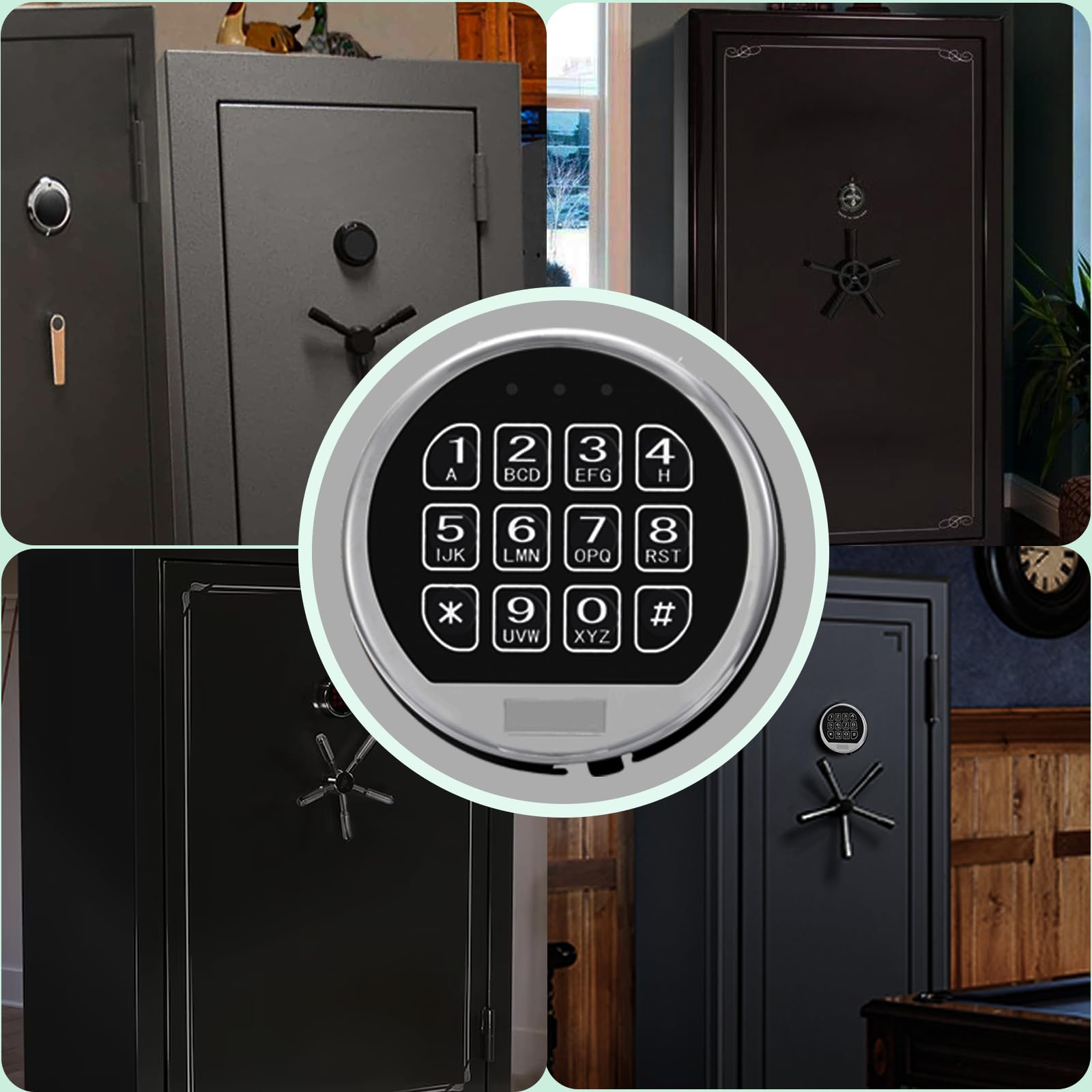

Application Our digital keypad security swing bolt lock replacement are suitable for home safes and lockboxes, pistol safes, hotel safes, cabinet safes, slot safes

Service If you are not a safe technician or professional locksmith, please do not attempt the installation. If you encounter any problems or difficulties, please contact us and we will provide one-on-one service to help you solve your problem
