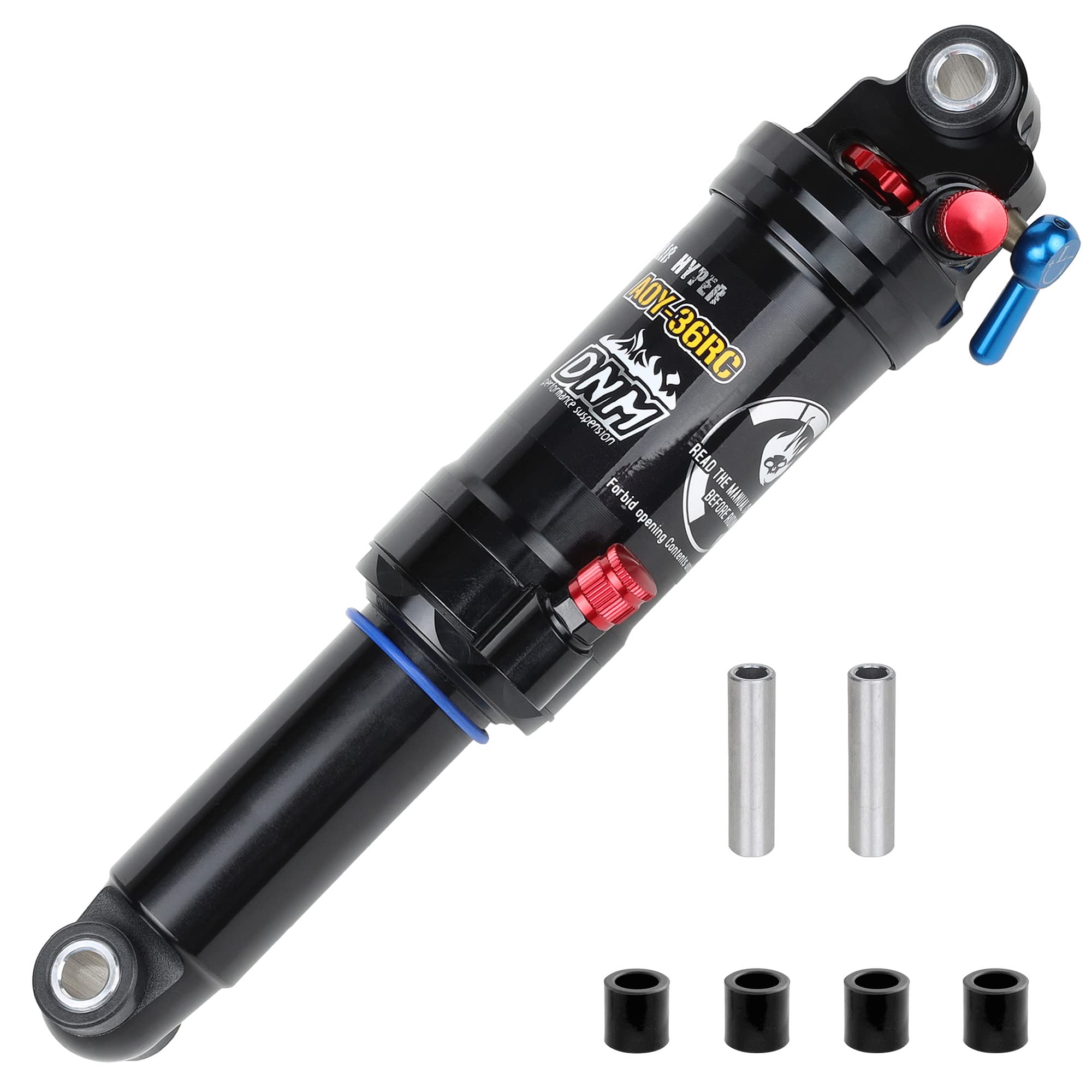

DNM Damping 3 System Mountain Bike Air Rear Shock - Rebound, Lock Out & Air Pressure Adjustable - AL 7005 Shark & AL 6061 Shock Body - Perfect for Trail Riding, Downhill & Enduro MTB Adventures

Please watch the video in the listing to know about how to choose and install the shock. FEATURES: This DNM shock features -- Adjustments Rebound / Lockout / Air Pressure Adjustable, Damper shaft Dark hard-anodized AL-7075 Ø 10 mm (0.39") shaft. Dark hard-anodized AL-6061 shock body. Riding style XC /TRAIL, Available Size Eye to Eye x Travel 165 x 35 mm ( 6.50 x 1.38 inch) 190 x 50 mm ( 7.83" x 1.97") 200 × 55 mm ( 7.87" × 2.17") Weight: 0.4 KG(0.88 Ib) for 165 mm Length.EXTRA BUSHINGS INCLUDED: Top Busing Size 8mm x 24mm Bottom Bushing Size 8mm x 24mm, Includes extra bushing and hardware 8mm x 50mm Length. FUNCTIONAL: Rebound Adjustment Knob +direction Rotation Increase Damper (Slow),- Direction Rotation, Decrease Damper (Fast). Compression Adjuster + Direction Rotation Lock-out,- Direction Rotation Open Up.main Air Chamber Supply Air Pressure According To Pressure Meter BAROMETRIC RECOMMENDATION: Weight 120 lbs - Main air chamber 90 Psi, Negative air chamber 50 Psi. Weight 140 lbs - Main air chamber 105 Psi, Negative air chamber 50 Psi. Weight 160 lbs - Main air chamber 120 Psi, Negative air chamber 55 Psi. Weight 180 lbs - Main air chamber 135 Psi, Negative air chamber 65 Psi. Weight 200 lbs - Main air chamber 150 Psi, Negative air chamber 70 Psi. Weight 220 lbs - Main air chamber 165 Psi, Negative air chamber 75 Psi. LOCK-OUT FEATURE You can use the lock-out feature when you are riding on a flat road. Please note: "Lock Out" does NOT mean completely solid. A SET OF BUSHINGS You need to modify (Cut) the bushings to fit your bike. PERFORMANCE Your bike will be lighter and look beautiful with an air shock installed. Who are we? BICYCLE EXPERTS We design and develop premium bicycle parts and accessories. WIDE SELECTION With more than 2000 high quality and best value products, you will always find what you need. QUALITY PRODUCTS All the products we stock are carefully selected from the factories in the cycling industry. PRODUCT VIDEOS Our team strives to add videos for all the products to give our customers an intuitive image of the product and know how to use it before purchasing.

PRODUCT SPECIFICATION Adjustments Rebound / Lockout / Air Pressure Adjustable, Damper shaft Dark hard-anodized AL-7075 Ø 10 mm (0.39 inch) shaft. Dark hard-anodized AL-6061 shock body.Riding style XC /TRAIL, Available Size Eye to Eye x Travel 165 x 35 mm ( 6.50 x 1.38 inch) 190 x 50 mm ( 7.83 x 1.97 inch) 200 × 55 mm ( 7.87 × 2.17 inch) Weight 0.4 KG(0.88 Ib) for 165 mm Lenght

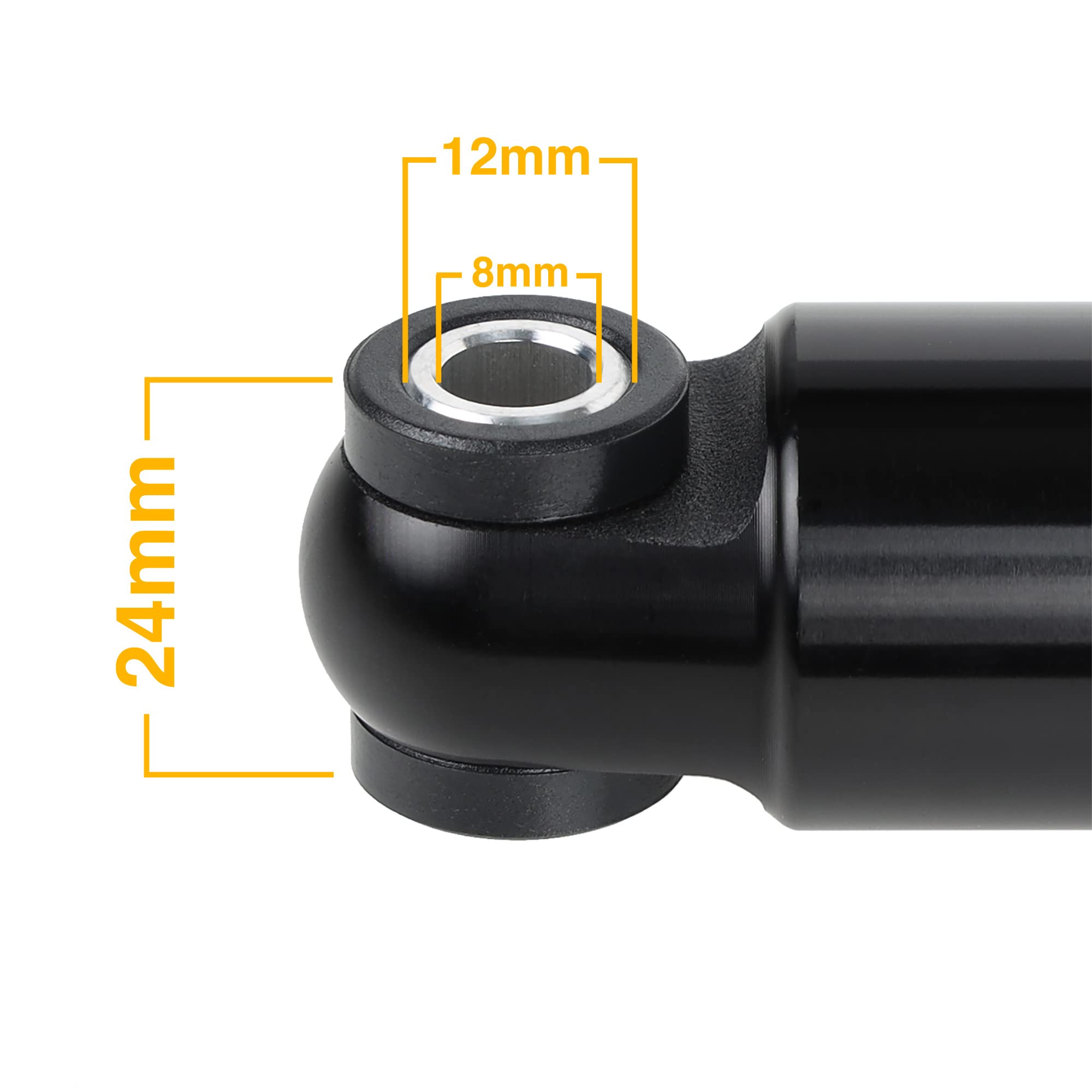

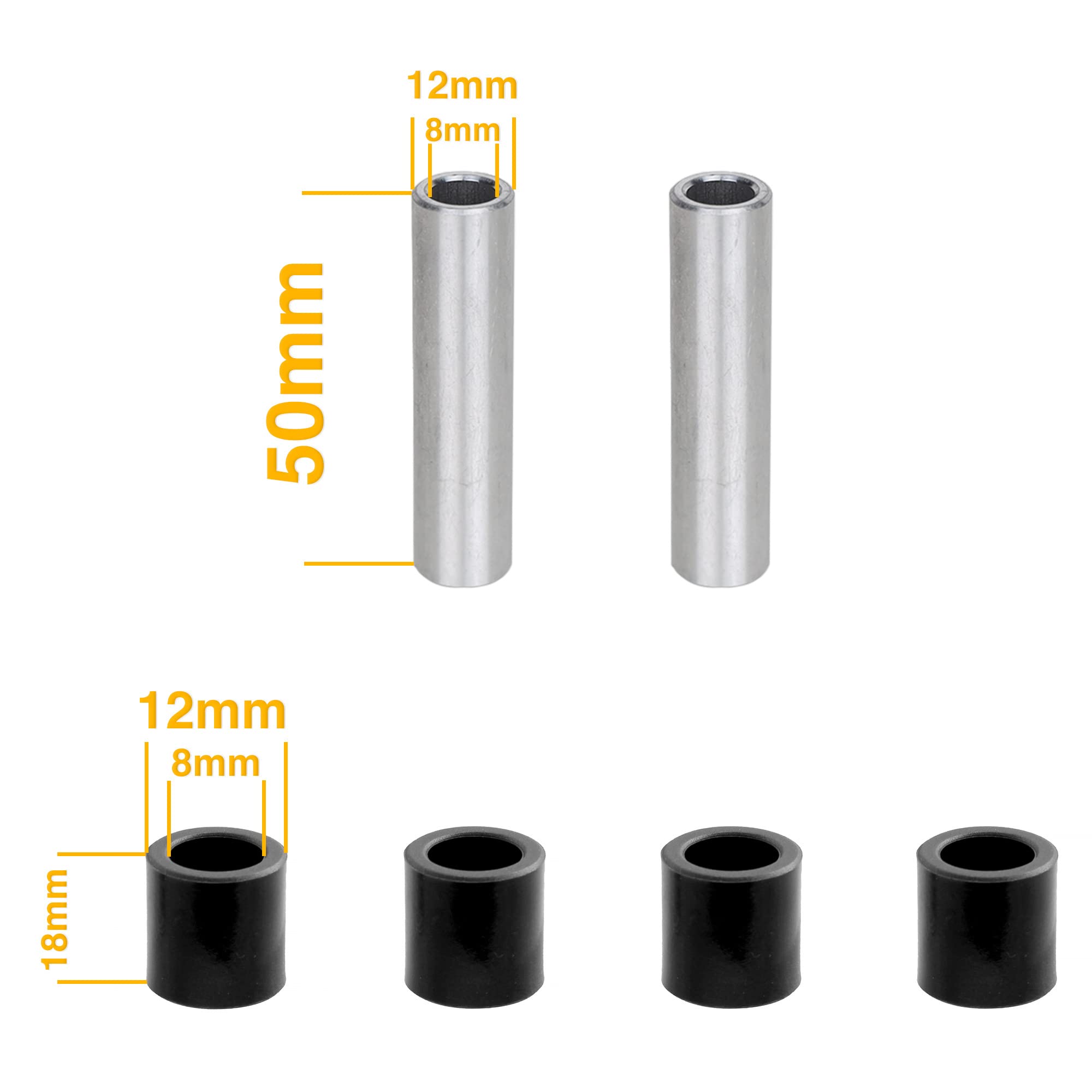

EXTRA BUSHING INCLUDES Top Busing Size 8mm x 24mm Bottom Bushing Size 8mm x 24mm, Includes extra bushing and hardware 8mm x 50mm Length. We Have Included An Additional Set Of Accessories To Meet The Different Size Requirements Of Some Customers Please see 2nd Pictures

FUNCTIONAL; Rebound Adjustment Knob +direction Rotation Increase Damper (Slow),- Direction Rotation, Decrease Damper (Fast). Compression Adjuster + Direction Rotation Lock-out,- Direction Rotation Open Up.main Air Chamber Supply Air Pressure According To Pressure Meter

BAROMETRIC RECOMMENDATION; Weight 120 lbs - Main air chamber 90 Psi, Negative air chamber 50 Psi.Weight 140 lbs - Main air chamber 105 Psi, Negative air chamber 50 Psi.Weight 160 lbs - Main air chamber 120 Psi, Negative air chamber 55 Psi.Weight 180 lbs - Main air chamber 135 Psi, Negative air chamber 65 Psi.Weight 200 lbs - Main air chamber 150 Psi, Negative air chamber 70 Psi.Weight 220 lbs - Main air chamber 165 Psi, Negative air chamber 75 Psi.

DNM QUALITY ORDER NOW, WORRY FREE! Made in Taiwan We're So Confident About Our Product Quality That If You Have Any Product Issues, We’re Very Happy To Either Provide A Refund Or A Replacement On Your Purchase! We’re Also Here To Support You If You Have Any Questions Or Queries, Please Get In Touch And We’ll Gladly Help.
