30" Full Extension Heavy Duty Drawer Slides 500 LB Capacity with Lock-In/Lock-Out Mechanism - Perfect for Kitchen Cabinets, Tool Chests & Garage Storage Organizers

500 lb. full extension drawer slide .75 x 3.00" 30 inch slide length. Steel ball rollers. Lock in / Lock out trigger on the left slide rail. Inner slide does not disconnect from main rail. Inner slide member suggested mount screws #10 wood or machine pan head for all slotted and thru holes ( not provided) Outer slide member suggested mount screws #10 wood or machine flat head for all slotted and thru holes ( not provided)

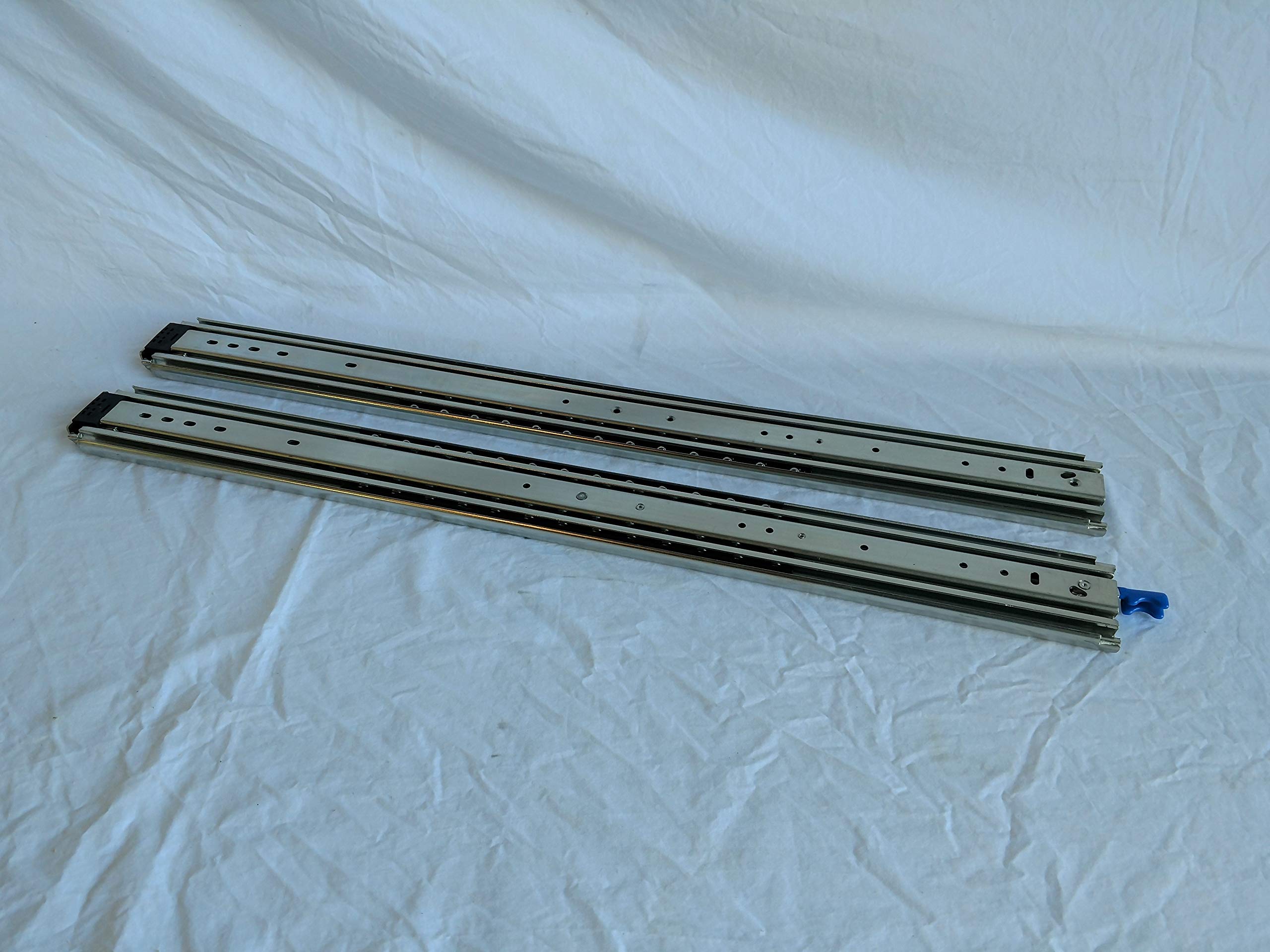

30" Drawer Slide Full Extension

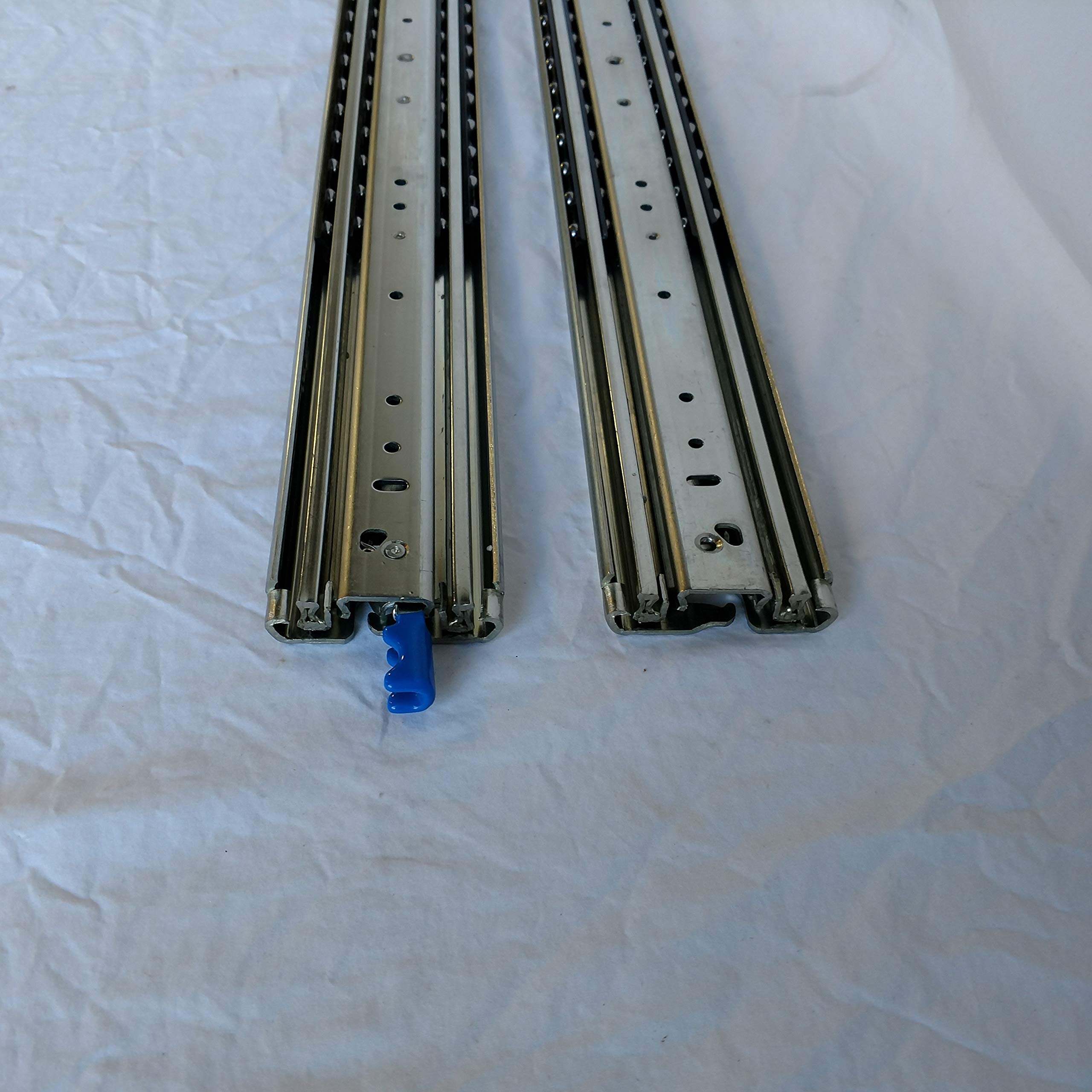

Lock in / Lock out feature on left side slide.

500# capacity, Steel roller balls, Slide dimensions .75"w x 3.0"h x 30" L

NO mounting hardware included, holes are provided for fastening

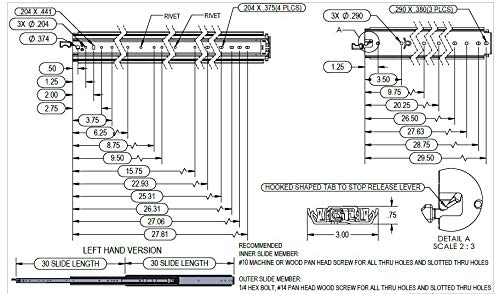

See drawing for mount hole references and specs
