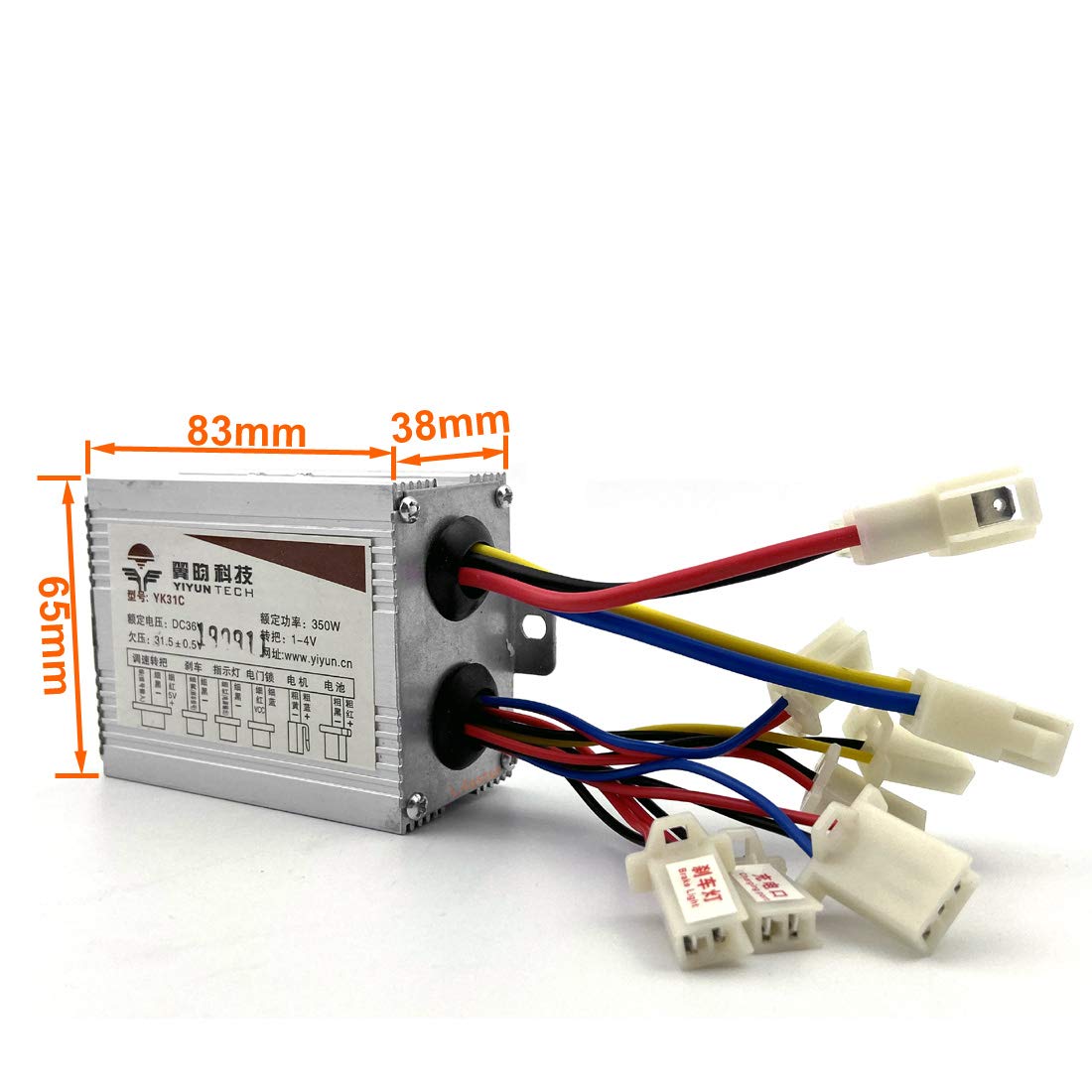

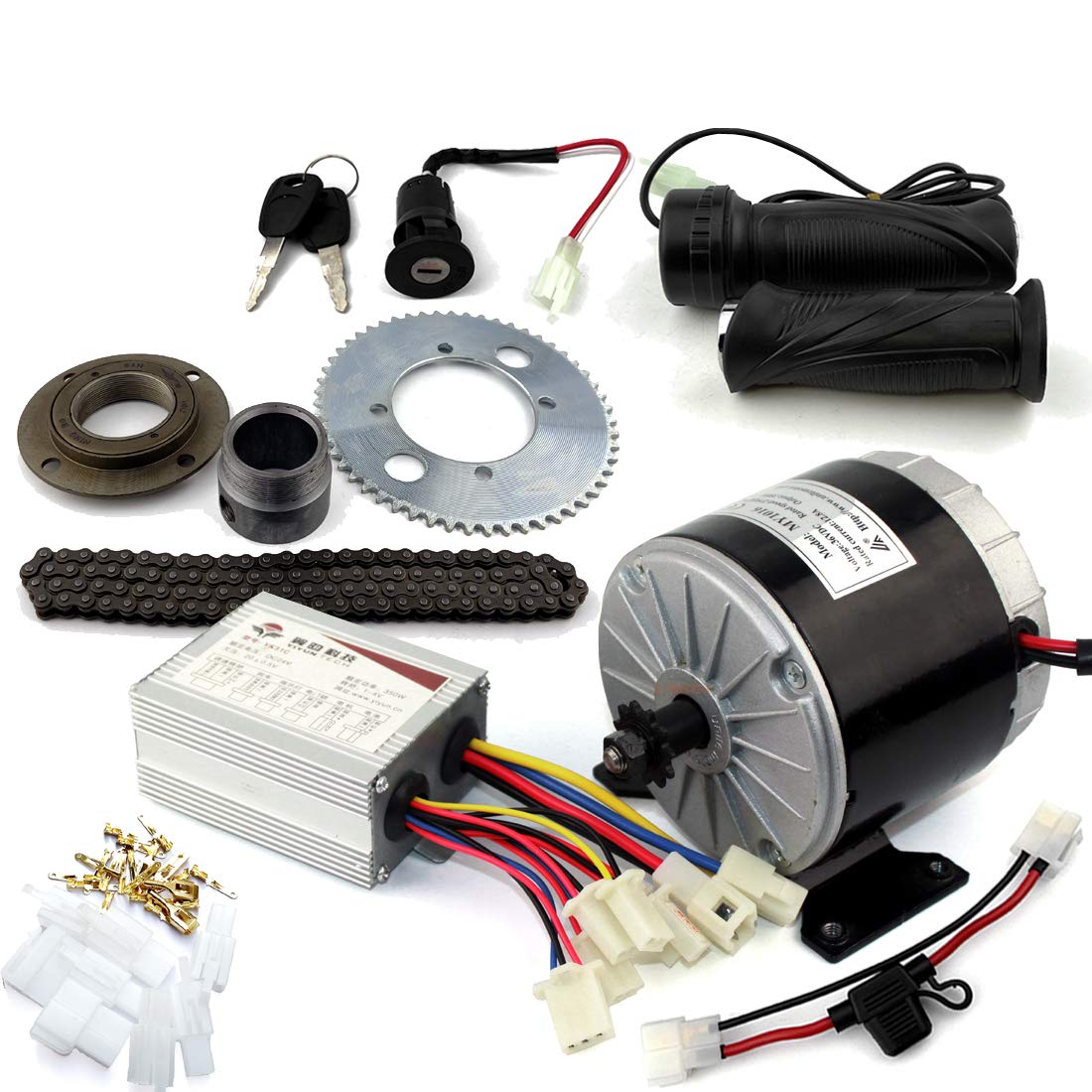

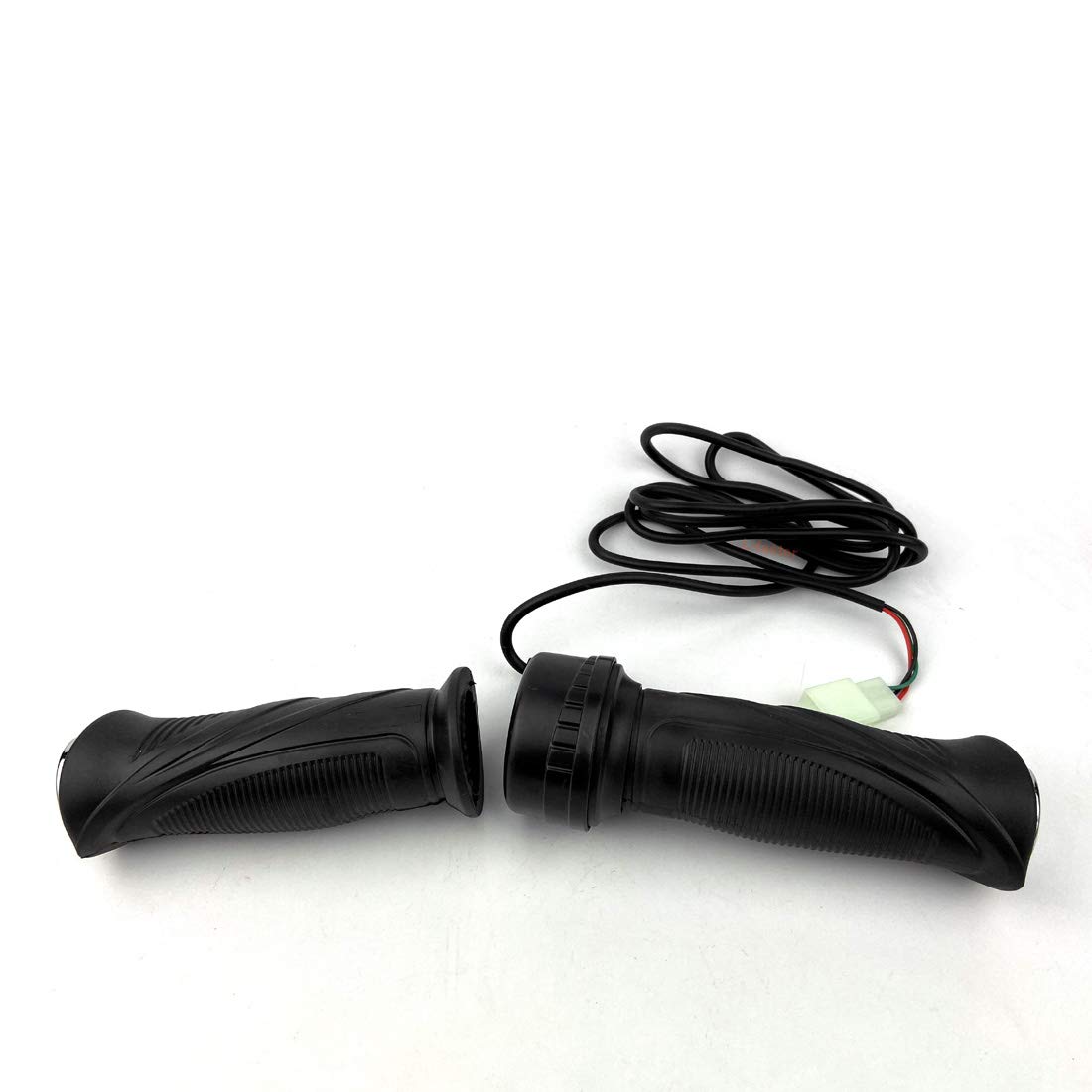

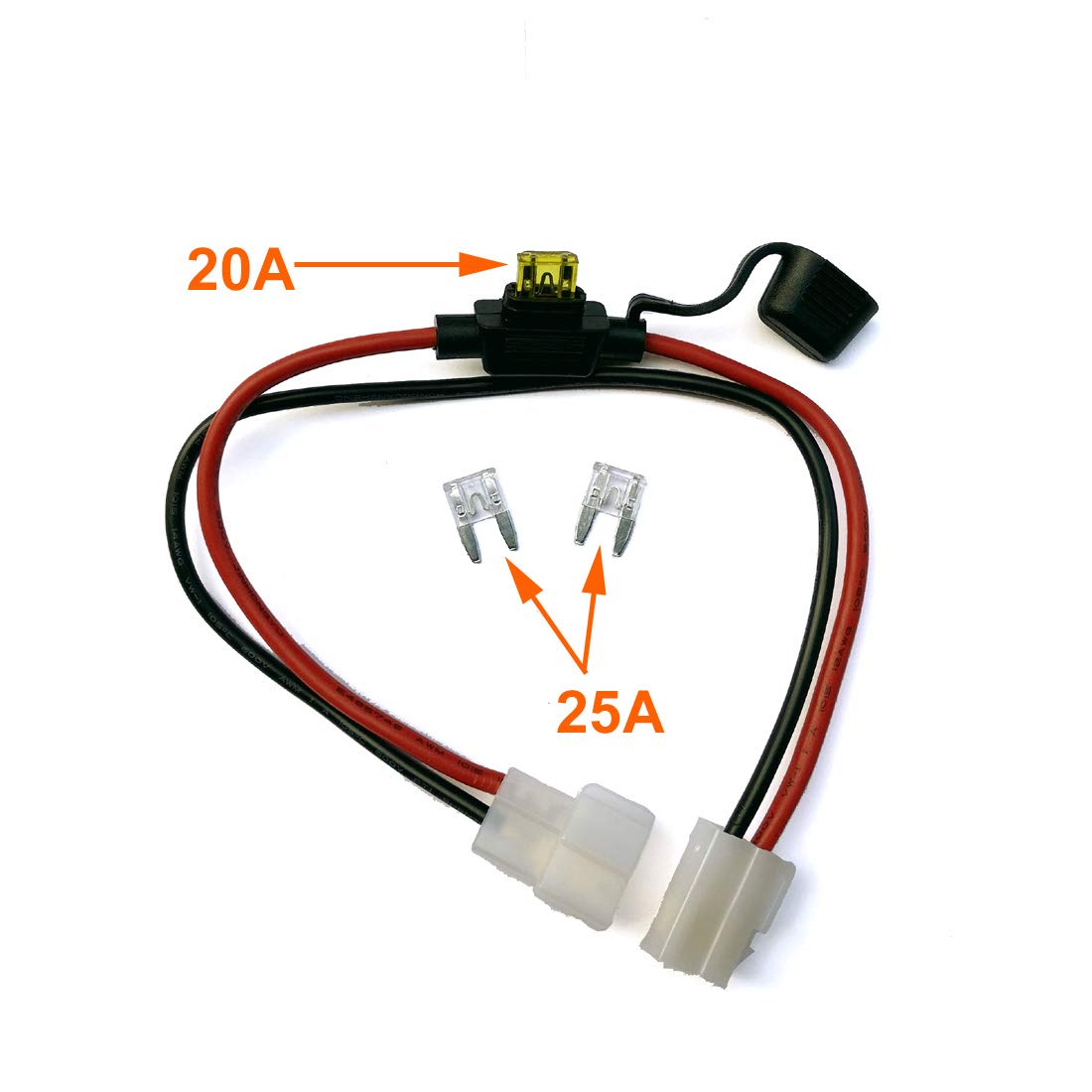

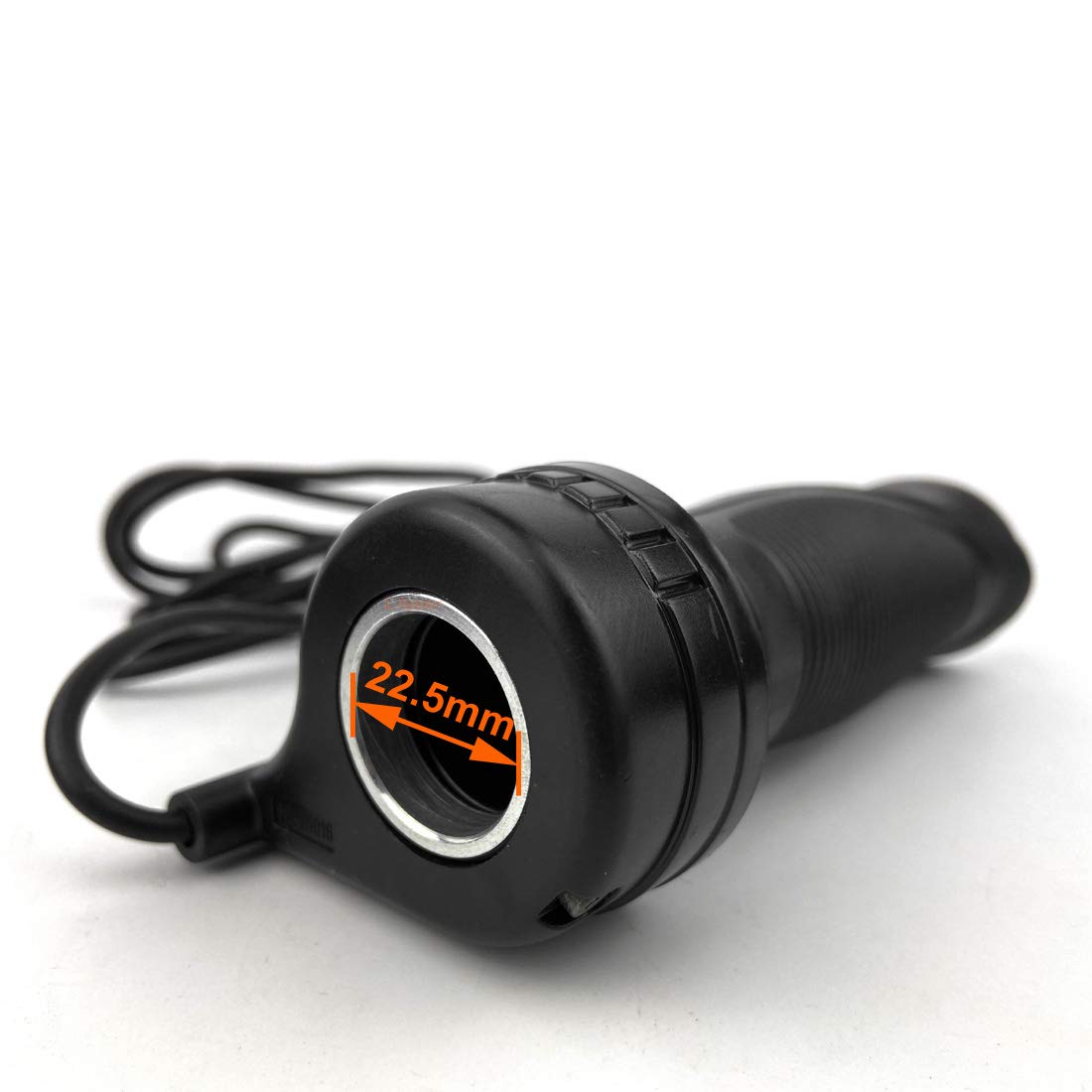

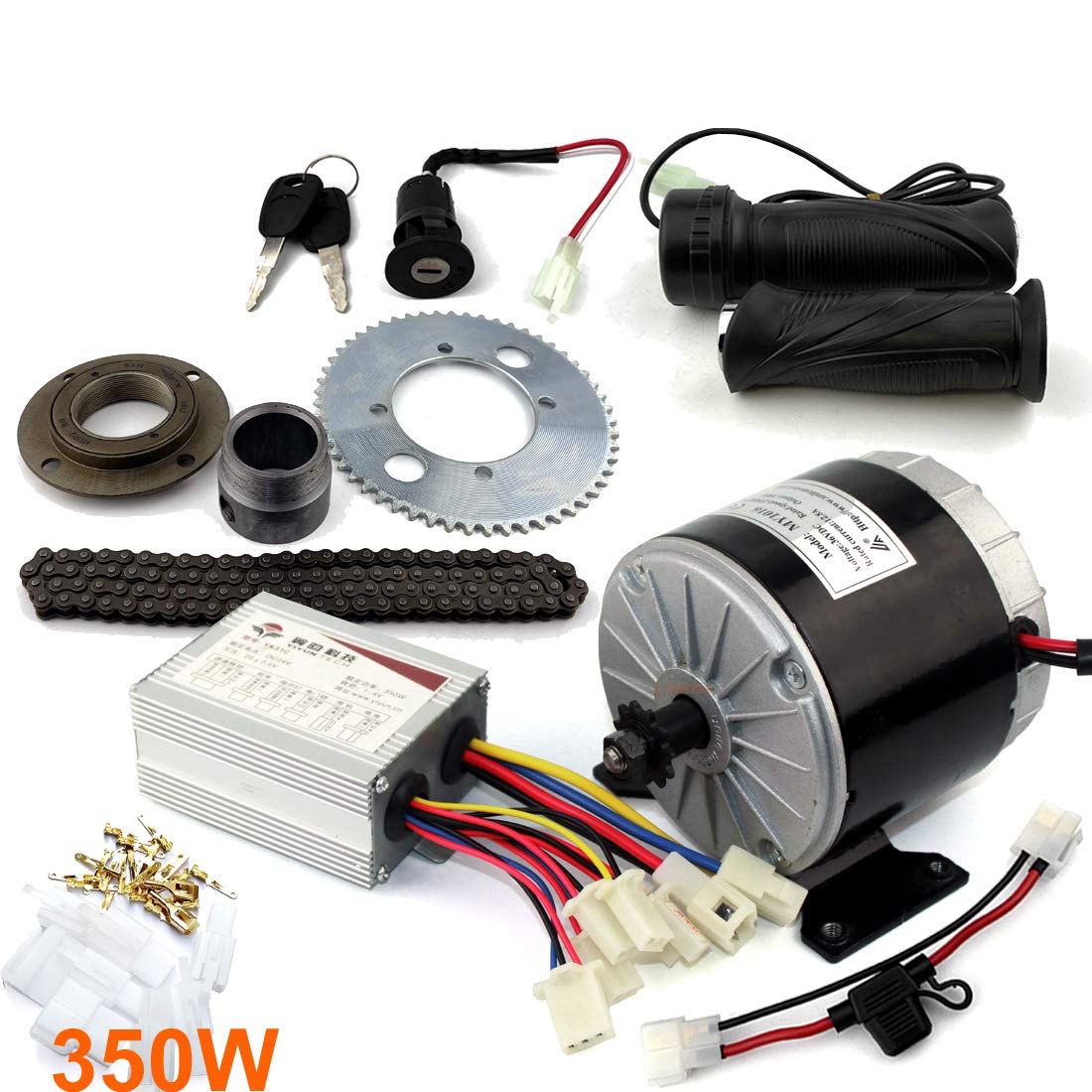

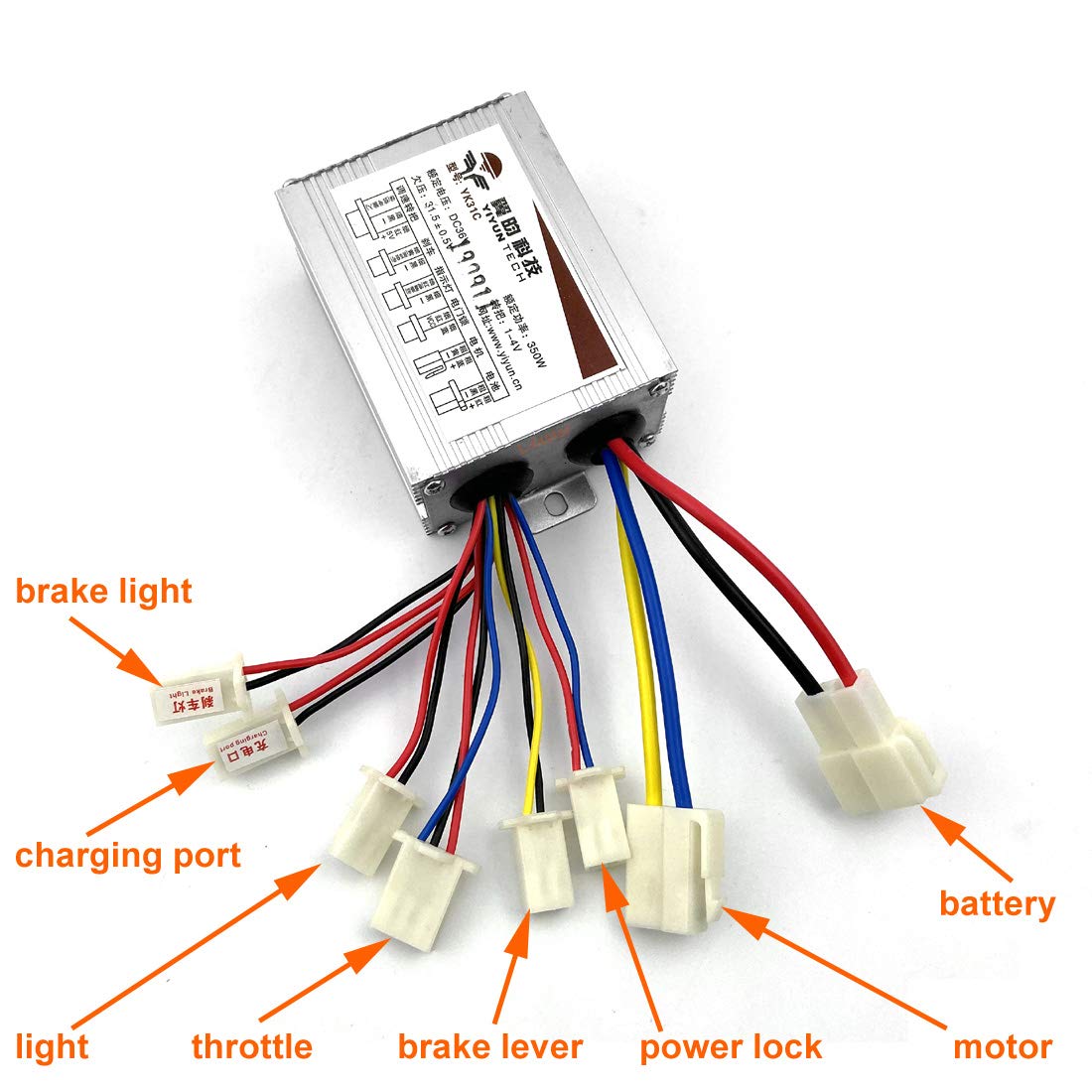

350W motor 350W motor kit2 350W motor kit3 350W motor kit7 350W motor kit10 Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews — 1.0 out of 5 stars 1 4.0 out of 5 stars 1 4.4 out of 5 stars 16 — Price $44.99$44.99 $81.00$81.00 $105.00$105.00 $124.00$124.00 $135.00$135.00 high speed motor no data no data no data no data Electric Tricycle E-bike Unite Motor The kit includes: 1). 1x 350W brush motor 2). 1x Motor controller 3). 1x handle throttle 4). 1 x No-teeth freewheel 5). 1 x Chain wheel (55 teeth) 6). 1 x 25H chain (106 links) 7). 1 x Freewheel adapter (27mm) 8). Some connectors Note: this kit without battery and battery charger. Motor specification Motor model: MY1016 Rated voltage: 24V / 36V Motor power: 350W No loading current: 2A / 1.4A Rated speed: 2750 rpm Rated current: 19.2A / 12.8A Motor weight: 2.45 kg Motor sprocket: 11T 25H sprocke Notes: 1). This motor is a high-speed motor that without reduction gearbox, its output speed is fast but its torque is small, so it does not good to drive heavy. Usually we use it on the small wheel scooter. 2). This kit comes with a 55T chain wheel, this can let the vehicle run fast(10-inch wheel about 25km/h), but the torque is low, if you want the torque high, you'd better change this chain wheel to 65T or 80T. 3). This freewheel adapter inside diameter is 27mm, if this size doesn't fit your axle, we also have the 21mm and 31mm models. 4). This kit uses the freewheel chain wheel that can drive forward only, if you want the motor drive backward, you need to use a fixed chain wheel or weld the freewheel to make it fixed. 6). This kit does not include battery, you need to buy the battery separately, the lead acid battery and the lithium battery are all ok, and the battery capacity I recommend 24V 15Ah and 36V 12Ah. Controller and throttle This controller comes with a fuse wire and 3 fuses, if you burn 1 fuse, you'd better note what makes it burnt and avoid this happen again. Sprockets and chains 25H Chain wheel (55 teeth) No-teeth freewheel 25H chain (106 links) Freewheel adapter (27mm)
