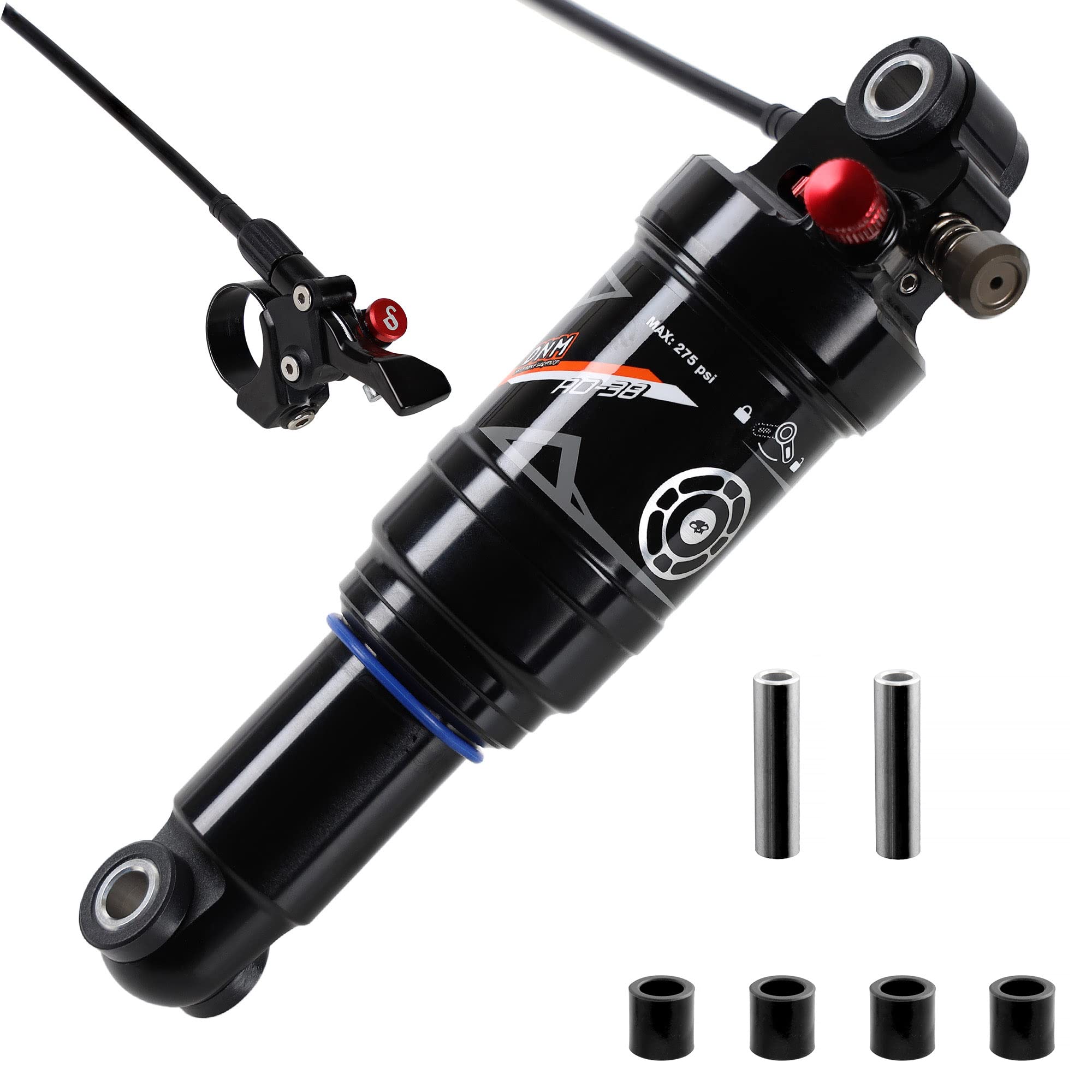

Premium DNM Mountain Bike Rear Shock - Adjustable Rebound, Remote Lockout & Air Compression - AL 7075 Shaft & 6061 Body with Extra Bushing Hardware - Ideal for Trail Riding, Downhill & MTB Upgrades

Previous page Bicycle Storage Wall Racks Visit the Store Bicycle Storage Floor Racks Visit the Store CyclingDeal Mats Visit the Store Cycling Shoes Adapters Visit the Store Pedals & Toe Cage Adapters Visit the Store Next page

FINE-TUNING ADJUSTMENTS: This air-sprung shock equips with multiple compression adjustment options: main and negative air chamber valves; rebound adjustment knob and handlebar-mounted remote lock out which helps get better experience while riding on different terrains.

PRODUCT SPECIFICATION: Damper shaft : dark hard-anodized AL-7075 Ø 10 mm (0.39 inch) shaft. Dark hard-anodized AL-6061 shock body. Available sizes: Eyelet to Eyelet x Stroke 152 x 28 mm (6 x 1.1 inch); 165 x 35 mm (6.5 x 1.38 inch); 190 x 50 mm (7.83 x 1.97 inch); 200 x 53 mm (7.87 x 2.09 inch); 210 x 53 mm (8.27 x 2.09 inch). Weight: 267g =0.58lbs (152mm); 278g =0.61lbs (165mm); 292g =0.63lbs (190mm); 300g =0.66lbs (200mm); 308g =0.68lbs (210mm). Remote lock out cable length: 1750mm=68.9inch.

COURTESY BUSHING HARDWARE INCLUDED: Top Busing Size : 8mm x 24mm. Bottom bushing size : 8mm x 24mm. We have included an additional set of bushing hardware (8mm x 50mm) to fit bikes with different suspension systems.

BAROMETRIC RECOMMENDATION; Weight 120 lbs - Main air chamber 90 Psi, Negative air chamber 50 Psi.Weight 140 lbs - Main air chamber 105 Psi, Negative air chamber 50 Psi.Weight 160 lbs - Main air chamber 120 Psi, Negative air chamber 55 Psi.Weight 180 lbs - Main air chamber 135 Psi, Negative air chamber 65 Psi.Weight 200 lbs - Main air chamber 150 Psi, Negative air chamber 70 Psi.Weight 220 lbs - Main air chamber 165 Psi, Negative air chamber 75 Psi.

ORDER NOW, WORRY FREE! We're so confident about our product quality that we can provide one year warranty ! Made in Taiwan.
